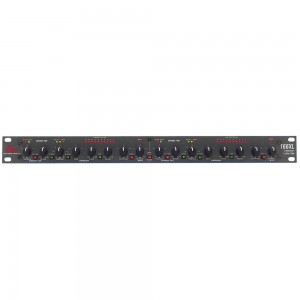

VOICESOUND

INPUT

Connector:

1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot HI

Impedance:

>50kΩ balanced, >25kΩ unbalanced

Maximum Level:

+24dBu, Balanced or Unbalanced

CMRR:

>40dB at 1kHz, typically >55dB

 SIDECHAIN INSERT

Connector:

1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)

Impedance:

Tip = >10kΩ (Input), Ring = 2kΩ (Output)

Maximum Level:

+24dBu

OUTPUT

Connector:

1/4" TRS phone and XLR floating balanced, XLR: Pin 2 and Tip Hi

Impedance:

120Ω balanced, 60Ω unbalanced

Maximum Level:

+21dBu,>+20 dBm into 600Ω, balanced or unbalanced

Frequency Response:

20Hz - 20kHz; +0, -0.5dB,Typical 3dB points are 0.35Hz and 110kHz, unity gain

Noise:

<-90dBu, 22Hz to 22kHz, no weighting, unity gain

THD + N:

Typically <0.04%; Any Amount of Compression Up to 40dB@1kHz

SMPTE IMD

Typically <0.08% @ +10dBu (15dB Gain reduction)

COMPRESSION

Threshold Range:

-40dBu to +20dBu

Threshold Characteristic:

Selectable OverEasy? or hard knee

Compression Raito:

Variable; 1:1 to Infinity:1; 60dB Maximum Compression

Attack Time:

Variable program-dependent; 3ms to 340ms for 15dB gain reduction

Release Time:

Variable program-dependent; 200dB/Sec to 3dB/Sec

EXPANDER/GATE

Threshold Range:

OFF to +15dBu

Expansion Ratio:

10:1

Maximum Depth:

>60dB

Attack Time:

<500µs (from Maximum Depth)

Release Time:

Adjustable, 30ms to 3sec (to 30dB attenuation)

SYSTEM

PeakStop™ Limiter Threshold Range:

0dBu to +20dBu

Gain Adjustment Range:

Variable; -20dB to +20dB

Interchannel Crosstalk

<-80dB, 20Hz to 20kHz

Dynamic Range:

>115 dB

Stereo Coupling:

True RMS Power Summing™

POWER

Power Consumption:

15 Watts Maximum

Operating Temperature:

0¾C to 45¾C (32¾F to 113¾F)

PHYSICAL

Dimensions:

1.75" x 19" x 6.75" (4.45 cm x 48.2 cm x 17.15 cm)

Weight:

Net weight: 5.05 lb (2.29 kg)
Shipping weight: 7.20 lb (3.27 kg)

Note: 0dBu =0.775Vrms

Note: Specifications subject to change without notice.
